Binary Dynaquattro 4 Dynamic Driver IEMs

Features:-

>Three Specialized Dynamic Drivers+1 Passive Diaphragm In-Ear Monitors.
>Three-Way Frequency Crossover.
>10mm+8mm+6.8mm Dynamic Drivers+6mm Passsive Diaphragm.
>Total Diaphragm Area of Approx 193 Square Millimeters.
>Exquisitely Detailed Wide Frequency Response Range.
>Powerful and Clear Sound Response.
>Unique Airy Presentation.
>New Era of Precision Diaphragm Control.
>Front Cavity Molded Physical Frequency Division.
>Aluminum Alloy CNC Machined Face Panels.
>High-Purity OFC Silver-Plated Cable with Interchangeable Plugs.
>Includes 3.5mm and 4.4mm Plugs. Technical Information:-
>Impedance: 23Ω@1kHz.
>Sensitivity: 111dB/Vrms.
>Effective Frequency Response Range: 20Hz-20kHz.
>THD+N: <1%@1kHz. Binary Acoustics has introduced an all-new DynaQuattro.

Featuring three specialized dynamic drivers measuring 10mm, 8mm, 6.8mm, and a 6mm passive diaphragm, the pair has an astonishing 193 square millimetres total diaphragm area. With the help of a three-way frequency crossover, the pair promises a clear, wide frequency response range with low distortion and high-resolution clarity. Prepare to wow yourself with the magic of DynaQuattro delivering a rich and clear sound response.

Excellently Detailed Wide Frequency Band:-

Binary DynaQuattro delivers an excellently detailed sound response with a wide frequency band response. The three specialized dynamic drivers and one Passive diaphragm work flawlessly together. They have their own independent sound guide structure with a precisely designed three-way frequency crossover for clear sound reproduction. The drivers are designed using a high-precision Klippel system that accurately optimizes the vibration modes for the different diaphragms present on the pair.

Enhanced Low-Frequency With A Powerful Dual-Diaphragm Dynamic Driver:-

The DynaQuattro features a powerful 10mm dynamic driver unit for a deep-diving and impactful lower-end response. The pair has a large-sized composite dual-diaphragm design. It has a 10mm titanium dome-coated silicone grainless diaphragm and a 6mm wool paper cone passive diaphragm. This dual-diaphragm design provides a crisp, refined lower-end region with rich details.

High-Res Mid and High-Frequency Response:-

The high-frequency 6.8mm dynamic driver adopts a high-rigidity aluminum diaphragm. It is entirely made up of aluminum providing a well-defined, detailed high-frequency band. The 8mm midrange driver unit has a cermet textureless diaphragm which is made up of extremely lightweight and hard metal. This offers fast transients and crisp detailing in the output signal.

Precisely Designed Physical Frequency Crossover:-

Binary Acoustics has carefully designed the Dynaquattro with a three-way physical frequency crossover. Each driver here has its own independent acoustic tube. It has been accurately calculated and tested thoroughly to deliver an enhanced sound presentation to the listener. This three-way crossover produces a rich, delicate, and well-layered sound presentation with ultra-low distortion among the drivers.

Classy Looks with CNC Machined Aluminum Alloy Face Panels:-

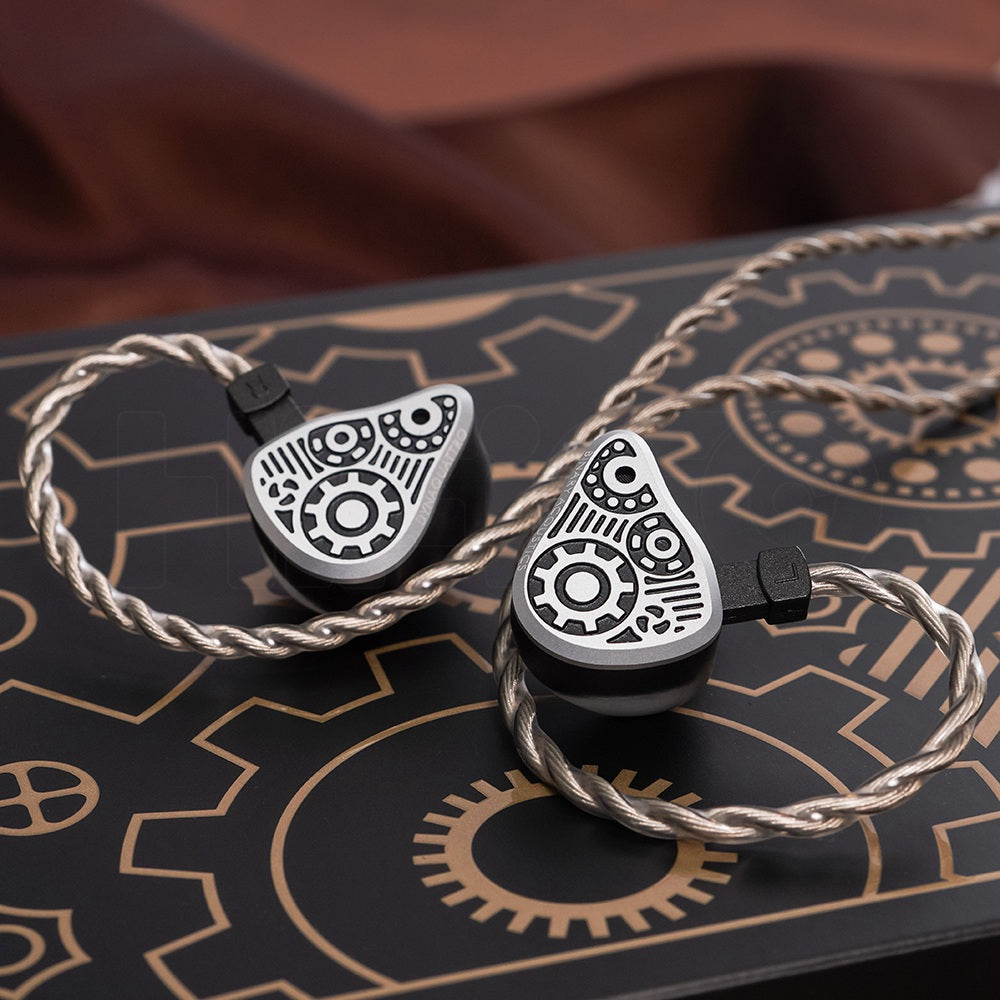

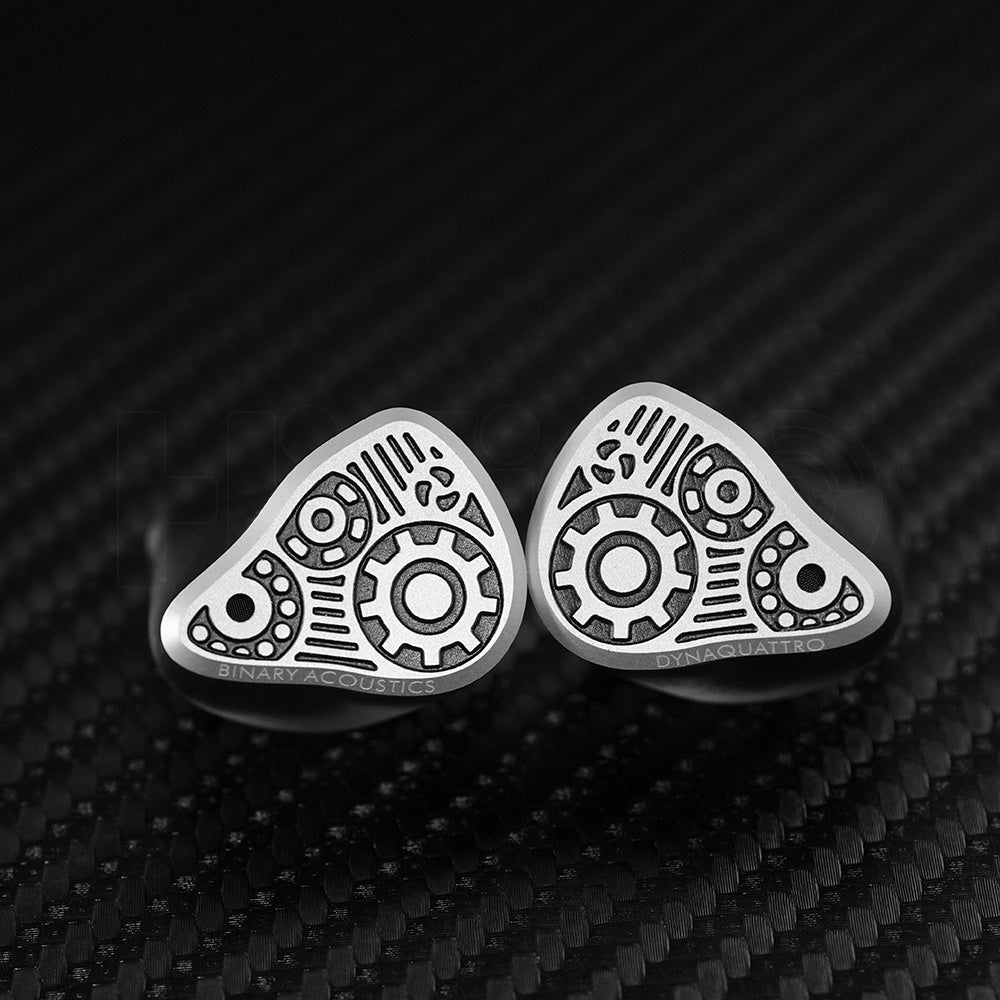

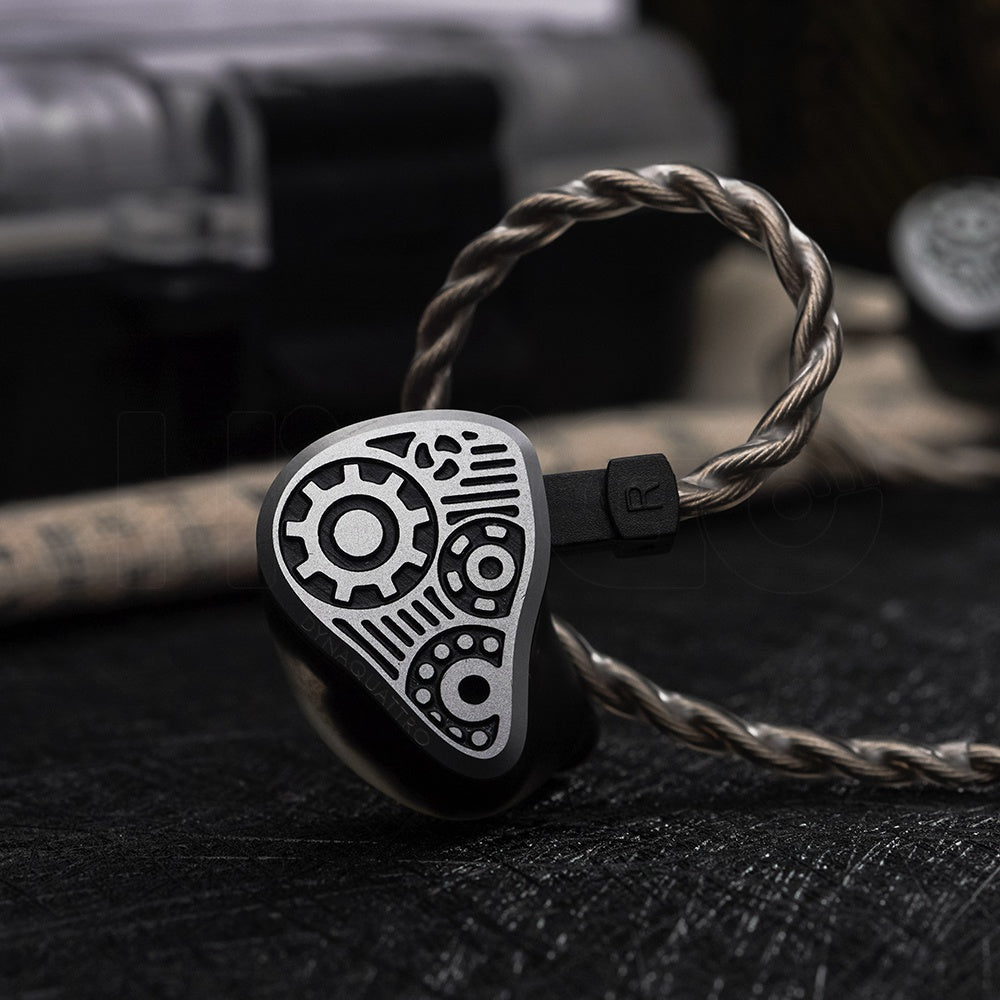

Binary DynaQuattro has got classy look with its CNC-machined aluminum alloy face panels. The design is inspired by the four internal dynamic drivers. It features industrial-grade patterns such as gears and machinery motifs. As per the brand, the precise gears and machinery here symbolize professionalism, concentration, precision, and innovation.

High-Quality OFC Silver-Plated Stock Cable:-

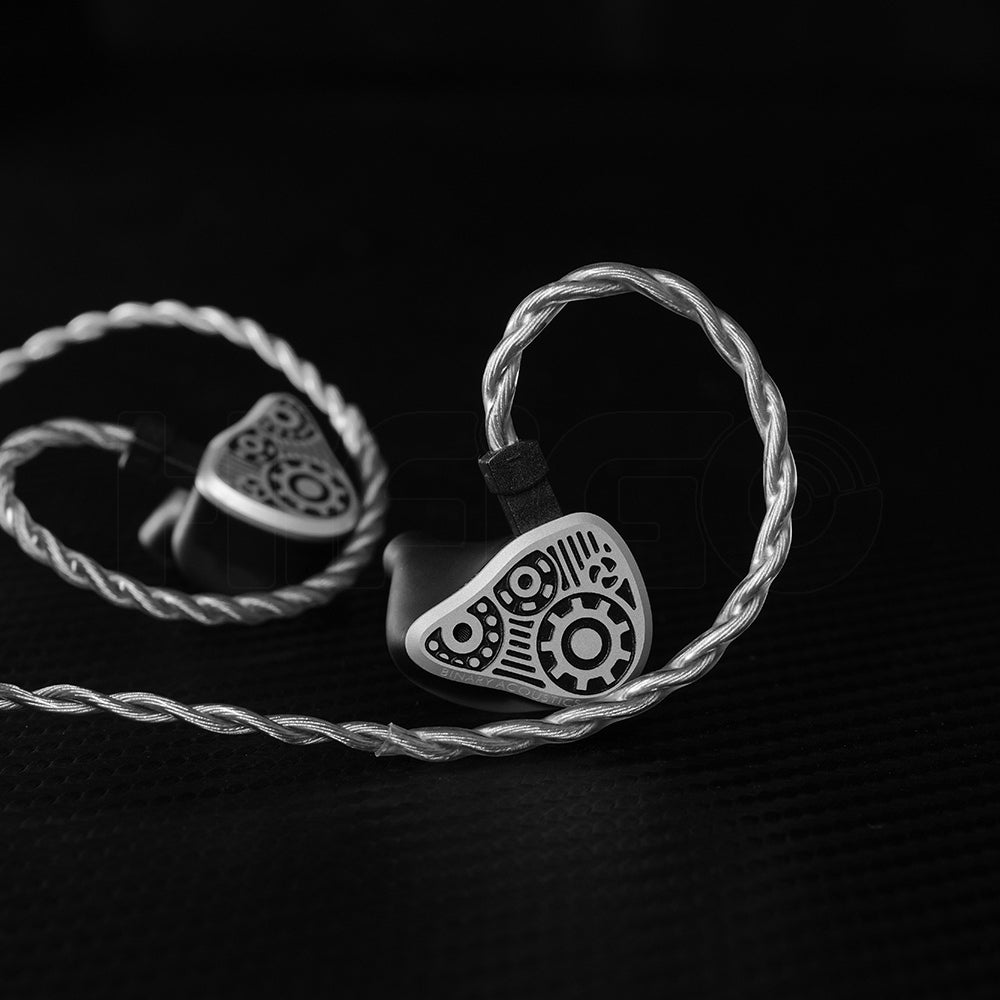

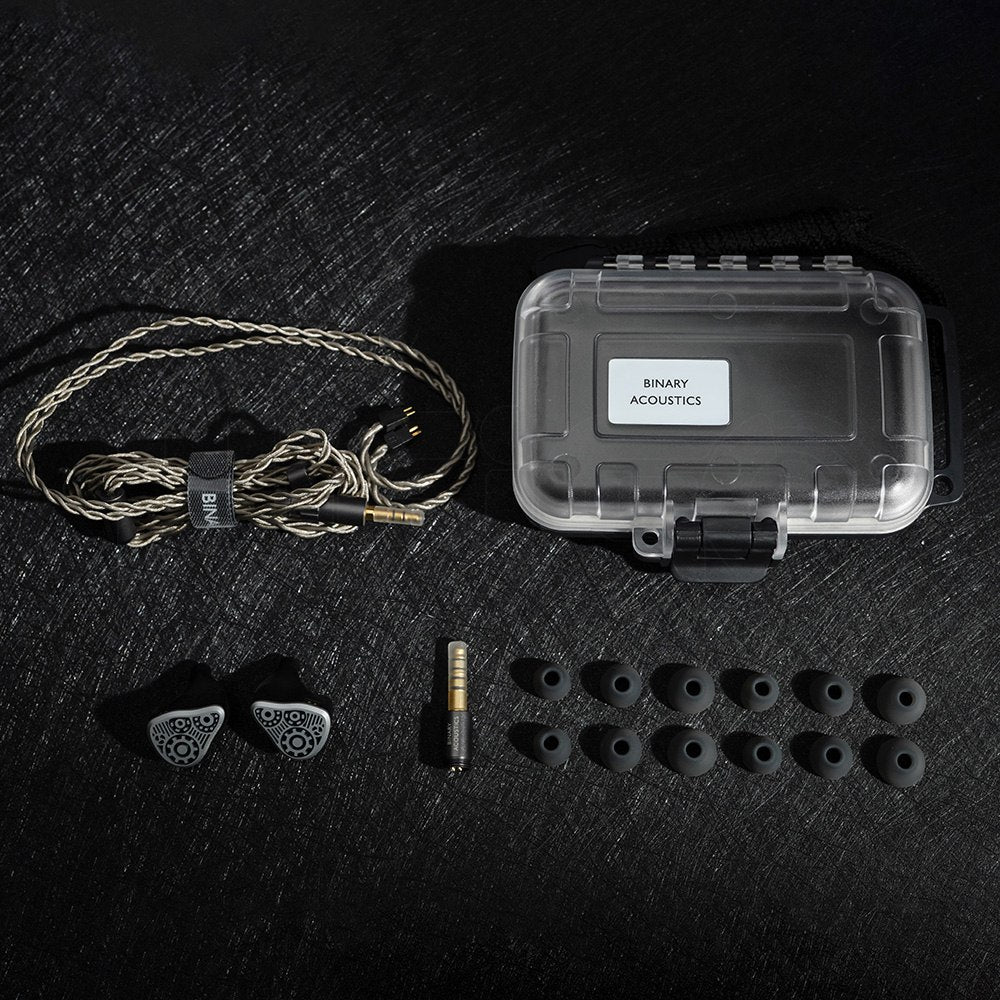

Binary DynaQuattro includes a high-purity OFC(oxygen-free copper) silver-plated cable with an interchangeable termination plug system. We have a 3.5mm single-ended and a 4.4mm balanced plug in the package. It adopts universal 2-pin 0.78mm connectors for easy cable replacement in the future.
